  Overview

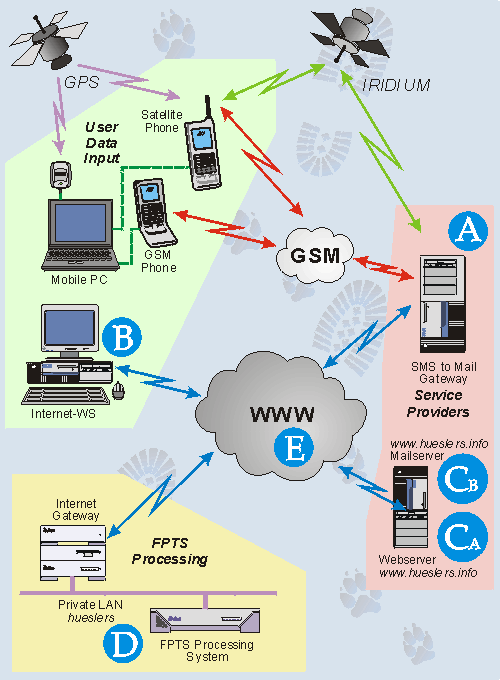

  Data - Flow / How FPTS is working

  Overview / Data Flow
  1
Data input from different sources A/B based on standard E-mail to our Mailserver CA 'hueslers.info' addressed to defined users/acconts ([xyz@hueslers.info]).
  2
System D is looking evry 5 minutes to our mailserver for relevant mails and collect all mail for defined user/account. With a specialized mail alias all fetched mails are forwarded to a script that was developed by us. The script is generating the static HTML pages for all users/accounts. While processing the mails, we are looking for special key words, that we can address them to their special meaning.
  3
Further on the script is transfering (ftp) all the newly generated HTML pages in D to the Web server CB. The delay for updating the Web pages from receiving new mail on the Mail server till transfering the pages, should not take logner then 5 minutes. The time for processing inputs from the user (any type of input) to the Mail server, is depending on the processing speed of all involved service providers (SMS -> Mail).




  Last Update: 18. January 2003 - 21:00 Author: ad@hueslers.info
